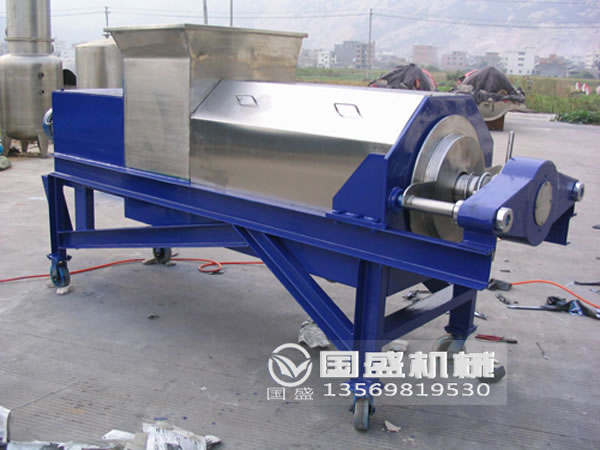

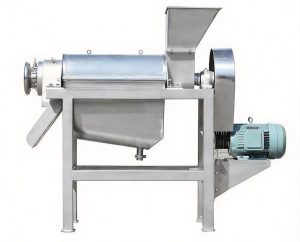

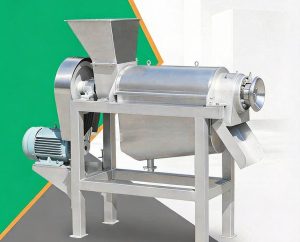

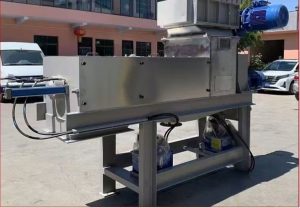

This machine is a continuous integrated spiral press juicer, integrating material crushing, spiral conveying, high-pressure squeezing and automatic juice-residue separation. Raw materials are cut and refined by the crushing unit after feeding, then progressively compressed by variable-frequency screw shaft. Juice seeps out through filter screen into juice collecting tank, while dry pomace is automatically discharged from the tail. Controlled by PLC system to adjust pressing pressure and feeding speed, it supports 24-hour non-stop continuous production with high juice yield and dry residue. It solves the drawbacks of low efficiency, incomplete separation and poor sanitation of manual juicing. It can work standalone or connect with washing machines, pasteurizers and filling lines to form a complete deep-processing juice production line.
Applicable Materials
Fruits
Apple, orange, lemon, passion fruit, kiwi, strawberry, mango, pineapple, pomegranate, grape, pitaya, litchi, longan, hawthorn, pear and other tropical fruits, berries and pomaceous fruits
Vegetables
Tomato, carrot, cucumber, celery, spinach, beetroot, ginger, garlic, bitter melon, pumpkin and other root vegetables & leafy vegetables
Processing Usage
Fresh fruit puree, jam base, fruit vinegar raw material, fruit & vegetable enzyme, beverage liquid base, hot pot vegetable soup, functional healthy juice
Technical Parameters
1. Machine Material: Food-grade SUS304 stainless steel for all food contact parts, painted carbon steel frame for anti-corrosion
2. Control System: PLC + touch screen one-button operation, multiple pressing parameter programs storable
3. Working Principle: Front crushing cutter set + progressive pressure screw pressing
4. Filter Screen Mesh: Replaceable 0.3mm/0.5mm/0.8mm screens for different pulp fineness
5. Production Capacity: Optional 0.5T/h, 1T/h, 2T/h, 3T/h, 5T/h
6. Driving Motor: Variable frequency reduction motor with overload protection, stable & low noise
7. Voltage Standard: 380V standard, customizable 220V/380V 50Hz/60Hz for Southeast Asia power grid

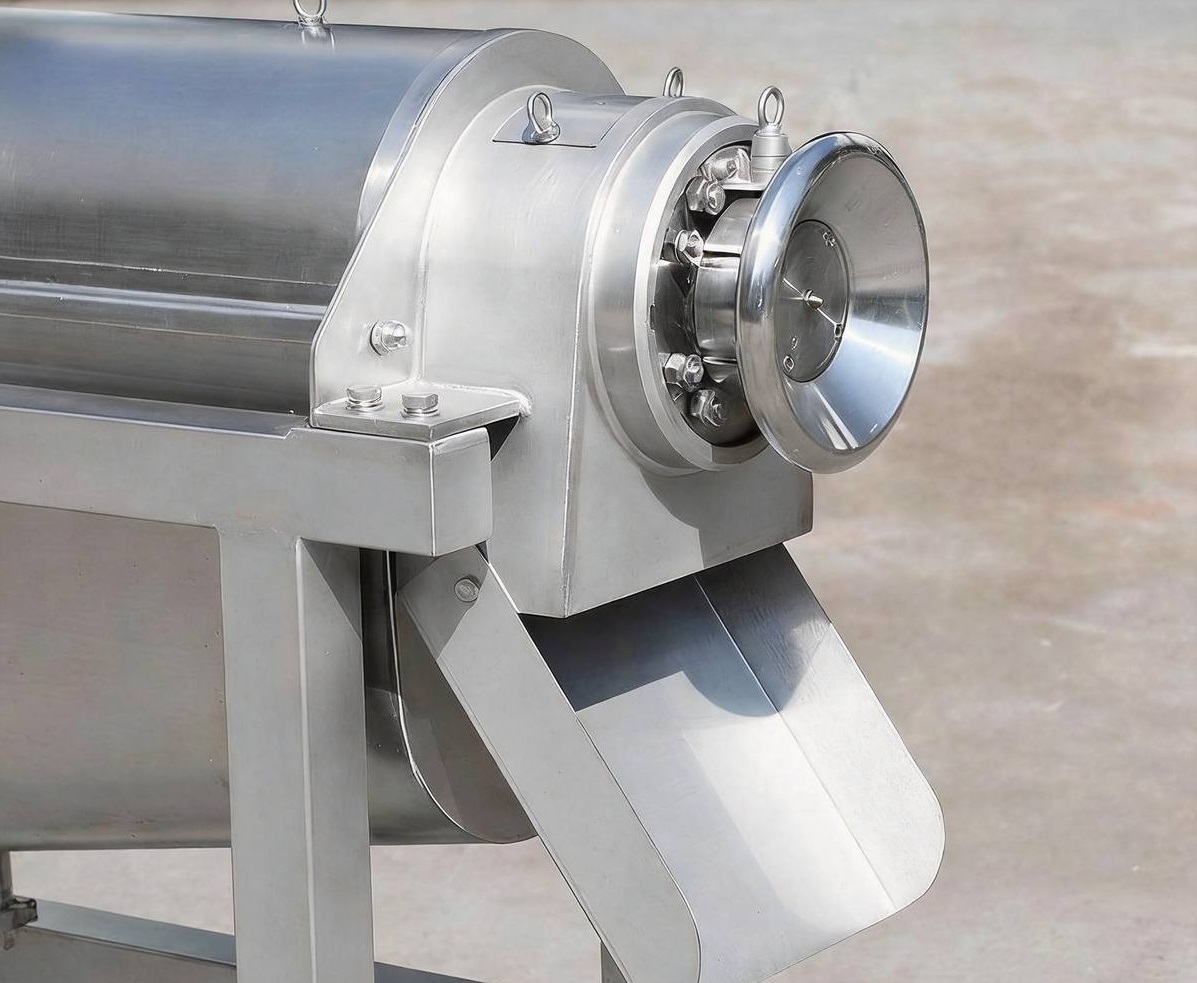

8. Residue Adjustment: Pneumatic/manual tail cone pressure adjustment to control dryness and juice yield
9. Cleaning Structure: Quick-detachable screw, screen and cutters, easy to clean with high-pressure water gun
10. Electrical Protection: Waterproof control cabinet, suitable for humid processing workshops
Core Advantages
1. High Juice Yield & Dry Pomace: Progressive multi-stage screw pressing achieves much higher juice extraction rate, reducing raw material waste and improving economic benefit.
2. Fully Automatic Continuous Operation: Automatic feeding, crushing, pressing and residue discharging, only one worker needed for feeding, greatly saving labor cost.
3. Sanitary & Easy to Clean: Full SUS304 contact parts without dead corners, modular quick disassembly, fully meet food export inspection standards.
4. Strong Multi-product Compatibility: Process fruits, root vegetables and berries simply by changing screens and pressure parameters.
5. SEA Working Condition Adaptation: Custom 60Hz frequency and local voltage, moisture-proof electric parts for long-term stable operation in hot & humid factories of Vietnam, Thailand, Indonesia.
6. Programmable Fixed Parameters: One-click recall of exclusive pressing programs for different raw materials, ensuring consistent juice concentration and taste batch by batch.
7. Production Line Expandable: Can connect with bubble washing machine, pasteurizer and filling machine to build a complete automatic juice processing line.
