Reference: Domestic intelligent post-packaging production lines. Applies to already-processed finished goods (bagged snacks, bottled beverages, sauce jars, prepared foods) — packaging only, no food processing. Suitable for granules, solids, and bottled liquids; heavily purchased by Southeast Asian food factories.
Reference capacity: 30–80 packs/min primary packaging; 300–500 cartons/hour back-end cartoning.
I. Project Objectives
For semi-finished/processed food products: complete primary packaging → inspection → cartoning → case sealing → palletizing fully automated; replace manual packing/cartoning to reduce labor; compatible with multi-spec changeover across bags, bottles and cans.
II. Complete Process Flow
Incoming product conveying → Weighing/bag making & filling (primary packaging) → Checkweighing → Metal detection → Coding/marking → Buffering & conveying → Automatic case erecting → Robotic packing into cartons → Case sealing → Labeling → Strapping → Robotic palletizing → Finished pallet output.
III. Full Packaging Line Equipment List
表格
| Section | Equipment | Function |
|---|---|---|

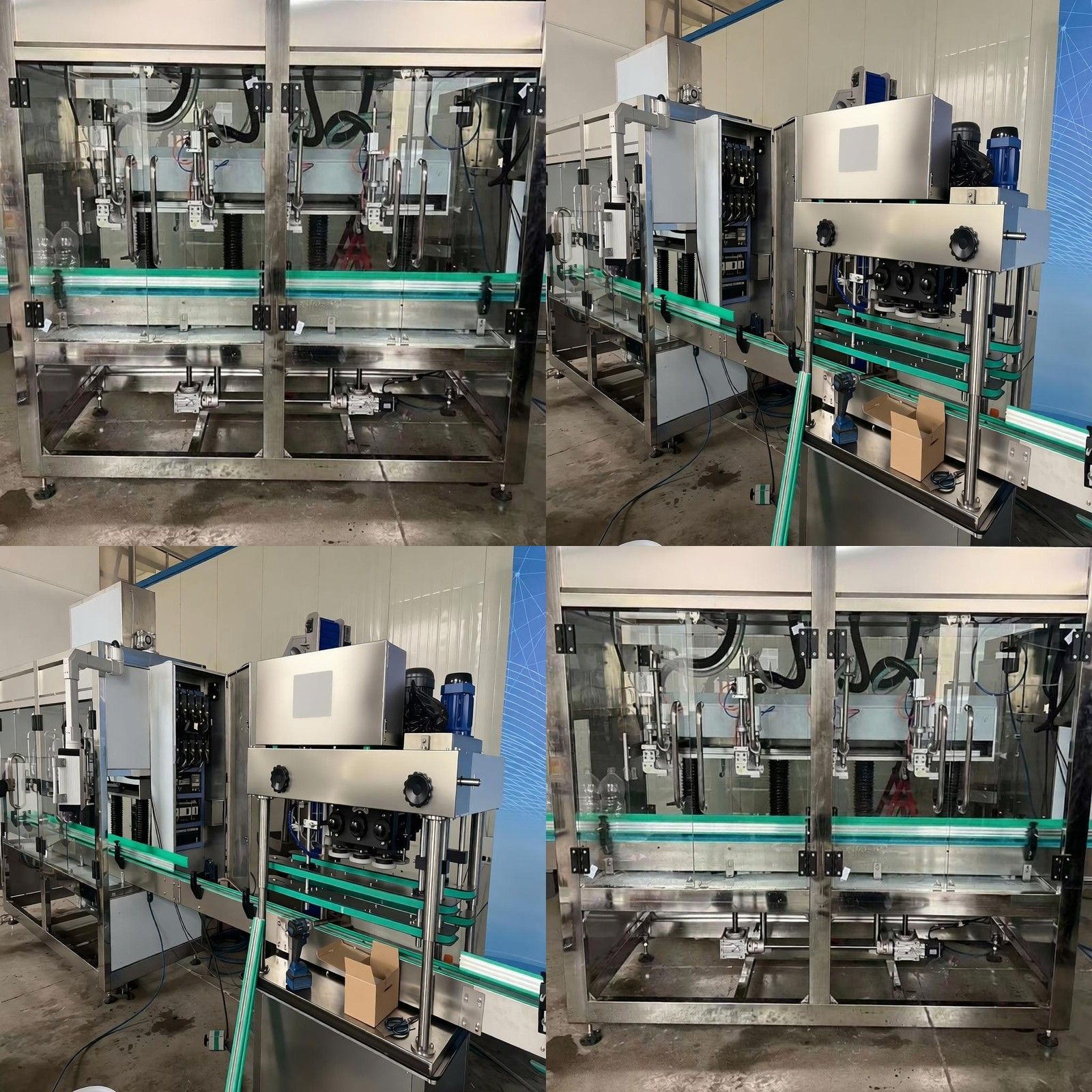

| Primary packaging unit | Multi-head combination weigher / liquid filler, pre-made pouch (give-bag) packer / VFFS bag maker | Bag filling & sealing; primary packaging of granule/liquid products |
| In-line quality inspection | Dynamic checkweigher, metal detector, vision inspection machine | Rejects under/overweight products, metal-contaminated products, and poorly sealed products |
| Coding | Inkjet / laser coder | Prints production date and batch; supports one-code-one-item traceability |
| Secondary packaging (cartoning) | Automatic case erector, product buffering conveyor, delta/articulated robot packer | Auto-opens cartons; robot packs small pouches into cartons |
| Case sealing & strapping | Adaptive flap-folding case sealer, PP strapping machine | Tapes cartons top/bottom; applies strapping reinforcement |
| Labeling | Carton side labeler | Applies batch label and case code to outer carton |
| Palletizing & output | Palletizing robot, pallet dispenser, stretch wrapping machine | Palletizes finished cartons neatly, applies stretch film protection, ready for truck loading |
| Auxiliary | Full-line conveyors, master PLC control system, safety guarding | Line interlocking, fault alarm and auto-stop |
IV. Two Workshop Layout Options
- Straight-line layout: For regular-sized rectangular plants; easy maintenance; most commonly used.
- U-shaped layout: For small floor areas; material in/out on the same side; many Southeast Asian legacy plants prefer U-shape.
V. Delivery Outputs
- Line layout CAD drawings.
- Full equipment, conveyors, safety guarding.
- Master PLC system with bilingual (Chinese/English) HMI.
- Equipment operation & maintenance manuals (English version available).
- On-site commissioning, operator & maintenance training.
- Spare/wear parts list, spare-parts plan.
- CE certification for export.
VI. Southeast Asia Adaptation Points
- All product-contact parts in 304 stainless steel; moisture-proof and corrosion-resistant upgrade for motors and electrical components in hot-humid environments.
- Fast changeover: Southeast Asian clients often have many product specs — equipment must support 15–30 minute quick changeover between specs.
- Simplify complex mechanisms where possible for easier local maintenance.
- Modular split: for limited budgets, clients can start with the back-end cartoning + palletizing section, and add primary packaging later.
VII. Indicative Investment Range
Back-end only (cartoning–case sealing–palletizing, excluding primary packaging): RMB 0.6–1.8 million.
Small/mid-size full back-end packaging line: RMB 1.2–3.5 million.
