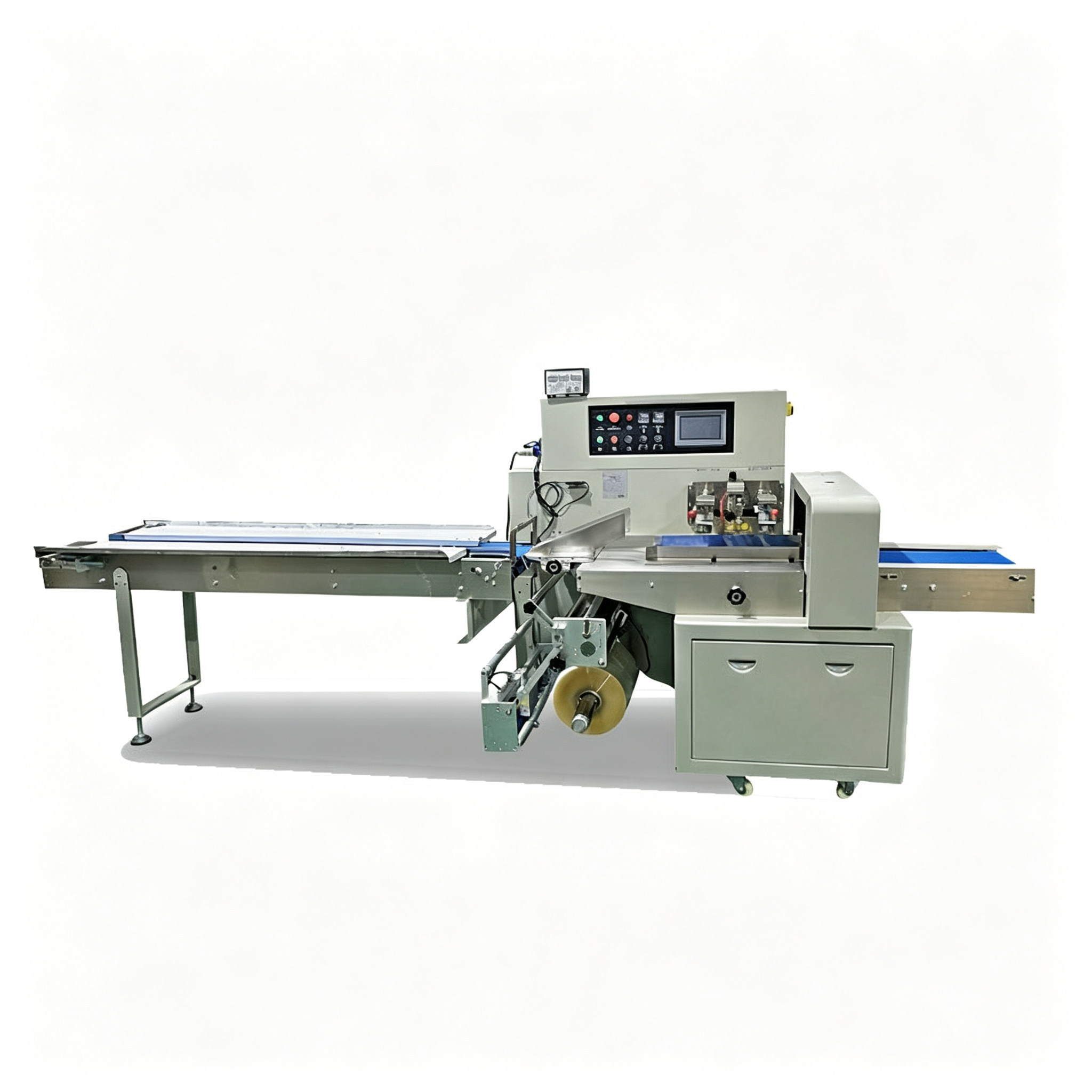

The whole machine realizes unmanned continuous assembly line operation, automatically completing film feeding, wrapping, middle sealing, end sealing, cutting and finished product conveying. It supports adaptive bag length adjustment, positioning stop to prevent knife adhesion and independent temperature adjustment. Equipped with variable frequency speed regulation system, the packaging speed is adjustable to adapt to different product sizes and production rhythms. With stable operation, flat and firm sealing edges and burr-free cuts, it can work independently or connect with material arranging machines, coding machines and boxing equipment to build fully automatic back-end packaging lines, solving the industry pain points of low efficiency, loose sealing, uneven appearance, high labor cost and poor sanitation caused by manual packaging.
Applicable Materials
Widely applicable for high-speed flexible packaging of various regular solid products with beautiful forming effects, covering food, daily necessities, hardware, medicine and consumables industries:
• Food Products: Biscuits, bread, mooncakes, cakes, candies, chocolate, instant noodles, frozen pastries, spicy strips, marinated eggs and individual snacks
• Daily Necessities: Disposable tableware, spoons, forks, towels, masks, soap, toothbrushes and individual daily items
• Hardware Parts: Screws, small hardware fittings, bearings, plastic parts and regular tool accessories
• Medical Consumables: Disposable medical supplies, medicine plates, cotton swabs and regular medical small items
• Other Products: Silicone products, rubber and plastic parts, stationery and regular block industrial products
Technical Parameters
• Machine Material: Industrial painted steel frame, food-grade SUS304 stainless steel for material contact parts, rust and corrosion resistant, compliant with food packaging hygiene standards
• Control System: PLC microcomputer intelligent control with touch screen operation, automatic photoelectric tracking and one-key parameter memory
• Packing Speed: 25–220 packs per minute, stepless frequency conversion speed regulation for flexible production adaptation
• Packing Film: Compatible with composite film, OPP film, PE film and heat-sealing film, adjustable film width 90–220mm
• Packing Size: Bag length 65–160mm, bag width 35–100mm, product height 5–35mm, non-standard customization available
• Temperature Control: Independent front and rear intelligent temperature control with precise temperature difference, firm sealing without scalding or wrinkling
• Driving System: Dual frequency conversion silent drive, stable low-noise operation without jitter and deviation at high speed
• Rated Power: 3.2KW standard power, energy-saving and low consumption for long-term continuous operation
• Voltage Standard: 220V/380V, 50Hz/60Hz, customizable for Southeast Asian power grids
• Safety Configuration: Positioning stop anti-sticking knife, overload protection, stall stop, leakage protection and misoperation prevention
• Machine Features: Automatic counting, fault alarm, no-material stop and film-break stop to reduce material loss
Core Advantages
• High-speed Mass Production: Maximum 220 packs per minute continuous high-speed packaging replaces manual bagging and sealing, greatly improving production efficiency for large-scale assembly line operation.
• Precise Tracking & Uniform Appearance: High-precision photoelectric tracking system realizes automatic color positioning, ensuring aligned patterns, flat sealing edges and smooth cuts with standardized finished packaging quality.
• Independent Temperature Control & Firm Sealing: Zoned precise temperature control adapts to different film materials, realizing tight, airtight, crack-free and wrinkle-free sealing with high qualification rate.
• Intelligent Loss Reduction & Cost Saving: No-material stop, film-break stop and anti-sticking knife design avoid film waste and product damage, reducing consumable and raw material costs effectively.
• Strong Versatility & Multi-purpose: Adjustable size parameters adapt to regular single products in food, daily necessities, hardware and medical industries, supporting multi-category production switching.
• Easy Operation & Labor-saving: Visual touch screen operation with one-key parameter memory, easy for beginners to operate without full-time attendance, reducing workshop labor costs.
• Stable & Low Failure Rate: Optimized frequency conversion transmission and mature PLC control system ensure stable 24-hour continuous operation with low maintenance cost.
• SEA Tropical Working Condition Adaptation: Moisture-proof and dust-proof electric system with customizable 60Hz frequency and local voltage for stable operation in high-temperature and high-humidity workshops.
• Full Line Compatibility: Seamlessly connects with material arranging, coding, labeling and boxing machines to build complete automatic production and packaging lines.
Application Scenarios
Widely used in food processing factories, snack industrial parks, pre-made food packaging workshops, daily necessities factories, hardware packaging workshops, medical consumable production bases, hotel catering supplies factories and stationery processing plants. It is highly suitable for high-speed standardized pillow packaging mass production of Southeast Asian snacks, disposable supplies, hardware parts, medical consumables and regular block products. It serves as core back-end packaging equipment for enterprises to realize packaging automation, unify product appearance, improve product grade and reduce labor and consumable costs.
Customizable Items
• Custom speed & capacity: Upgraded high-speed model for ultra-high production over 220 packs per minute
• Custom packaging size: Lengthened and widened body for non-standard extra large or small product packaging
• Custom film adaptation: Upgraded special film system for frosted film, aluminum foil film and thickened composite film
• Custom voltage & frequency: Adapt to power grids of Vietnam, Thailand, Malaysia and Indonesia
• Multilingual customization: English, Thai, Vietnamese multi-language touch screen system
• Optional functions: Automatic coding, counting & sorting, finished product conveying and waste collection device
• Structural upgrade: Full SUS304 stainless steel upgrade, dust-proof sealing and noise reduction optimization
• Custom packaging process: Vent hole packaging, easy-tear notch packaging and custom sealing process debugging
• Turnkey line solution: Complete layout of material arranging, pillow packaging, coding, labeling and boxing line
