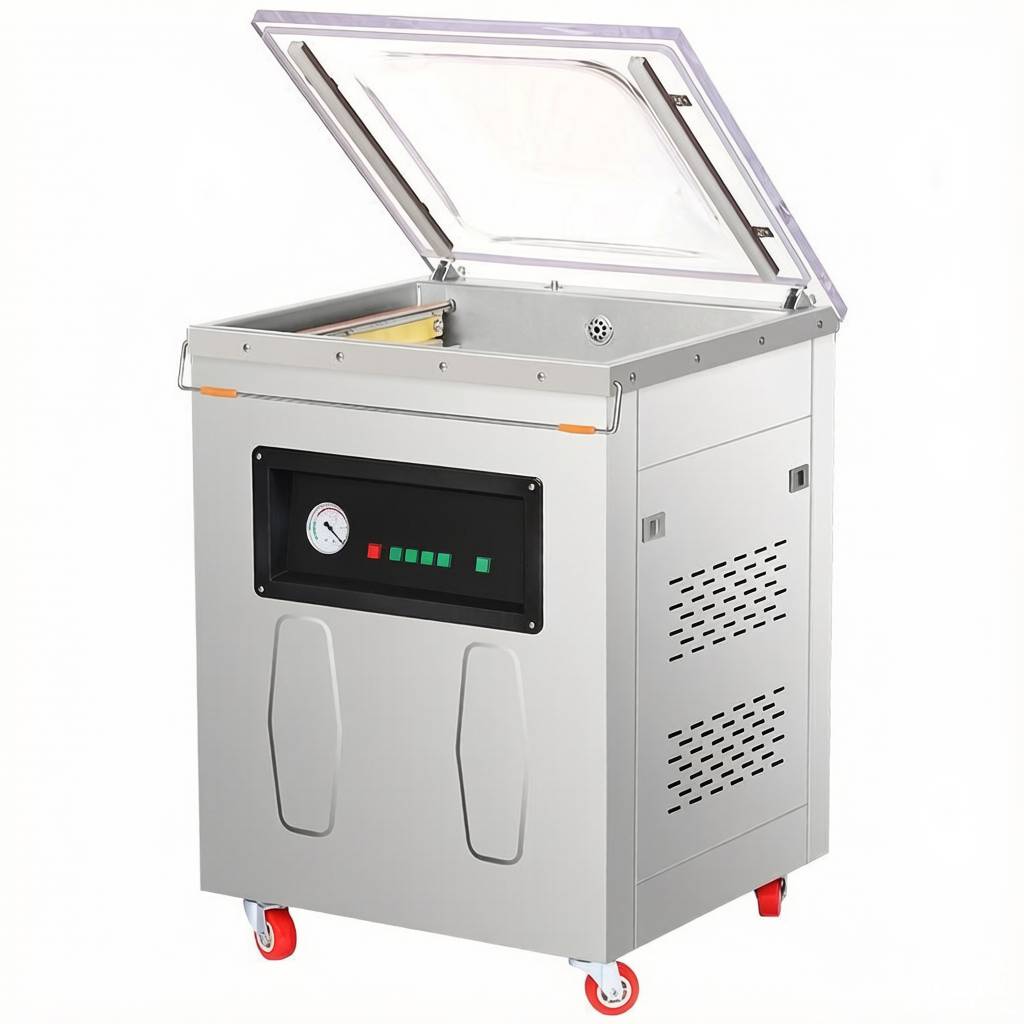

Single Chamber Vacuum Packaging Machine

中文

单室真空包装机采用一体式密闭真空腔体结构，自动完成抽真空、热封、冷却、回气开盖整套工序。设备将包装袋内部空气抽出，形成低氧真空环境，抑制细菌滋生，防止产品氧化、受潮、霉变，有效延长保鲜与储存周期。搭载微电脑智能控制系统，真空时长、封口时长、冷却时间独立可调，适配不同厚度真空袋、干湿各类物料。标配透明可视上盖，实时观察包装状态；内置大功率旋片真空泵，抽气速度快、极限真空度高，封口平整紧实不漏气。基础机型支持纯真空封装，可选配充气保鲜功能（气调包装）。设备既可单机独立作业，适配中小型作坊、门店间歇式生产；也可搭配输送设备接入简易生产线，广泛解决生鲜、熟食、干货、五金、电子元器件包装保鲜、防潮防锈难题。

English

The single chamber vacuum packaging machine adopts an integrated sealed vacuum chamber structure, automatically completing the whole workflow: vacuum extraction, heat sealing, cooling, air return and lid opening. The equipment removes air inside pouches to form a low-oxygen vacuum environment, inhibiting bacterial growth and preventing oxidation, moisture and mildew, so as to extend shelf life and storage period. Equipped with microcomputer intelligent control system, vacuum time, sealing time and cooling time can be adjusted independently to fit vacuum bags of different thickness and various wet & dry materials. It comes with a transparent visible lid to monitor packaging status in real time. Built-in high-power rotary vane vacuum pump delivers fast pumping speed and high ultimate vacuum, achieving flat, tight and airtight sealing. Standard model supports pure vacuum packaging; optional gas flushing (MAP modified atmosphere packaging) is available. The machine can run independently for intermittent production in small & medium workshops and stores, or connect with conveyors for simple production lines. It solves packaging problems such as fresh food preservation, moisture-proof and rust-proof treatment for cooked food, dry goods, hardware and electronic components.

二、适用物料 Applicable Materials（中英对照）

中文

干湿两用设计，兼容固体、带少量汤汁食材、粉料、五金器件，适配复合真空袋、铝箔袋等包装材料：

生鲜肉类：猪肉、牛肉、羊肉、禽肉、冷冻肉品、预制肉制品
水产海鲜：鱼虾、贝类、海产干货、即食海鲜
熟食卤味：卤菜、酱肉、鸡爪、凉菜、快餐料理包
干货杂粮：大米、杂粮、坚果、茶叶、菌菇、土特产
休闲食品：辣条、豆干、香肠、腊肉、零食制品
五金电子：轴承、螺丝、金属配件、电路板（防潮防锈包装）
医药耗材：中药材、一次性耗材、实验室样品密封保存

English

Wet & dry dual-use design, compatible with solid products, ingredients with slight soup, powder and hardware components, supporting composite vacuum bags and aluminum foil bags:

Fresh Meat: Pork, beef, mutton, poultry, frozen meat and processed meat products
Seafood: Fish, shrimp, shellfish, dried seafood and ready-to-eat aquatic products
Cooked Braised Food: Braised dishes, marinated meat, chicken feet, cold dishes, prefabricated meal packages
Dry Grains & Agricultural Goods: Rice, cereals, nuts, tea, mushrooms and local specialties
Snacks: Spicy strips, dried tofu, sausages, cured meat and snack products
Hardware & Electronics: Bearings, screws, metal parts, circuit boards (moisture & rust prevention)
Medical Supplies: Chinese herbal medicine, disposable consumables and laboratory sample sealing

三、标准技术参数 Technical Parameters（中英对照）

中文参数

整机材质：整机 SUS304 食品级不锈钢腔体与机身，耐腐蚀、防水易清洗，符合食品加工卫生标准
控制系统：微电脑数字控制面板，真空时间、封口时间独立数字调节，参数断电记忆
真空泵配置：大功率旋片式真空泵，极限真空≤1kPa，抽气稳定持久
封口规格：标配单 / 双热封条，封口长度 400–600mm 可选，封口宽度 10mm
工作循环：1–3 次 / 分钟，单次循环 15–40 秒，根据物料与真空度自动变化
腔体尺寸：400×420×80mm / 500×520×80mm / 600×620×90mm（多规格可选）
额定功率：5KW–3.0KW
适配电压：220V/380V，50Hz/60Hz，支持东南亚各国电压定制
安全配置：过载保护、漏电保护、过热保护、压力平衡保护
适配膜材：尼龙复合袋、PE 真空袋、铝箔袋、阻氧保鲜袋

English Parameters

Machine Material: Full SUS304 food-grade stainless steel chamber and frame, corrosion-resistant, waterproof and easy to clean, meeting food hygiene standards
Control System: Digital microcomputer control panel, independent adjustment of vacuum & sealing time, parameters saved after power off
Vacuum Pump: High-power rotary vane vacuum pump, ultimate vacuum ≤1kPa, stable continuous pumping
Sealing Specification: Single / double sealing bars optional, sealing length 400–600mm, sealing width 10mm
Cycle Speed: 1–3 cycles per minute, single cycle 15–40s, adjustable according to products and vacuum level
Chamber Size: 400×420×80mm / 500×520×80mm / 600×620×90mm (multiple sizes optional)
Rated Power: 1.5KW–3.0KW
Voltage Standard: 220V/380V, 50Hz/60Hz, customizable for Southeast Asian power grids
Safety Protection: Overload protection, leakage protection, overheat protection and pressure balance protection
Compatible Bags: Nylon composite bags, PE vacuum bags, aluminum foil bags and oxygen barrier storage bags

四、核心产品优势 Core Advantages（中英对照）

中文

干湿通用，适用范围广：可包装干货、生鲜、带少量汤汁熟食，一台设备覆盖多品类生产，设备利用率高。
高真空密封，保鲜效果强：进口配置真空泵，真空度高，袋内贴合紧实，有效隔绝氧气水汽，大幅延长货架期，降低产品损耗。
不锈钢一体腔体，卫生耐用：全 304 不锈钢结构，不易生锈、耐汤汁腐蚀，腔体无死角，清水冲洗即可清洁。
智能数显调控，操作简单：参数一键设定并记忆，新手快速上手；透明翻盖方便观察包装状态，减少次品。
封口牢固稳定：独立温控热封系统，封边均匀不起皱、不开裂，耐低温冷冻，长途运输不易破损。
结构紧凑占地小：立式单室结构，移动脚轮可选，门店、中央厨房、小型工厂均可摆放。
适配东南亚湿热工况：电控元器件防潮防尘，支持定制 60Hz 频率，高温高湿车间长期稳定运行。
功能拓展灵活：可选充气保鲜、加深腔体、加宽封条，后期可对接输送流水线升级自动化。

English

Wet & Dry Universal Use: Suitable for dry goods, fresh food and cooked food with slight soup, covering multi-category production and improving equipment utilization.
High Vacuum Sealing & Excellent Preservation: High-performance vacuum pump achieves tight bag fitting, isolating oxygen and moisture, extending shelf life and reducing product waste.
Integrated Stainless Steel Chamber for Hygiene & Durability: SUS304 structure resists rust and soup corrosion. Smooth chamber without dead corners for easy water washing.
Intelligent Digital Control & Easy Operation: One-click parameter setting & memory, friendly for new operators. Transparent lid helps monitor packaging and reduce defective products.
Stable & Firm Sealing: Independent temperature-controlled heating system ensures wrinkle-free, crack-resistant sealing, resistant to freezing and long-distance transportation.
Compact Footprint: Vertical single chamber design with optional moving casters, ideal for butcher shops, central kitchens and small factories.
Adaptable to SEA Hot & Humid Environment: Moisture & dust-proof electric components, customizable 60Hz frequency for stable operation in tropical workshops.
Flexible Function Upgrade: Optional gas flushing, deepened chamber and extended sealing bars; can connect with conveyor lines for automatic production upgrading.
