一、机器功能 Machine Functions（中英对照）
中文：

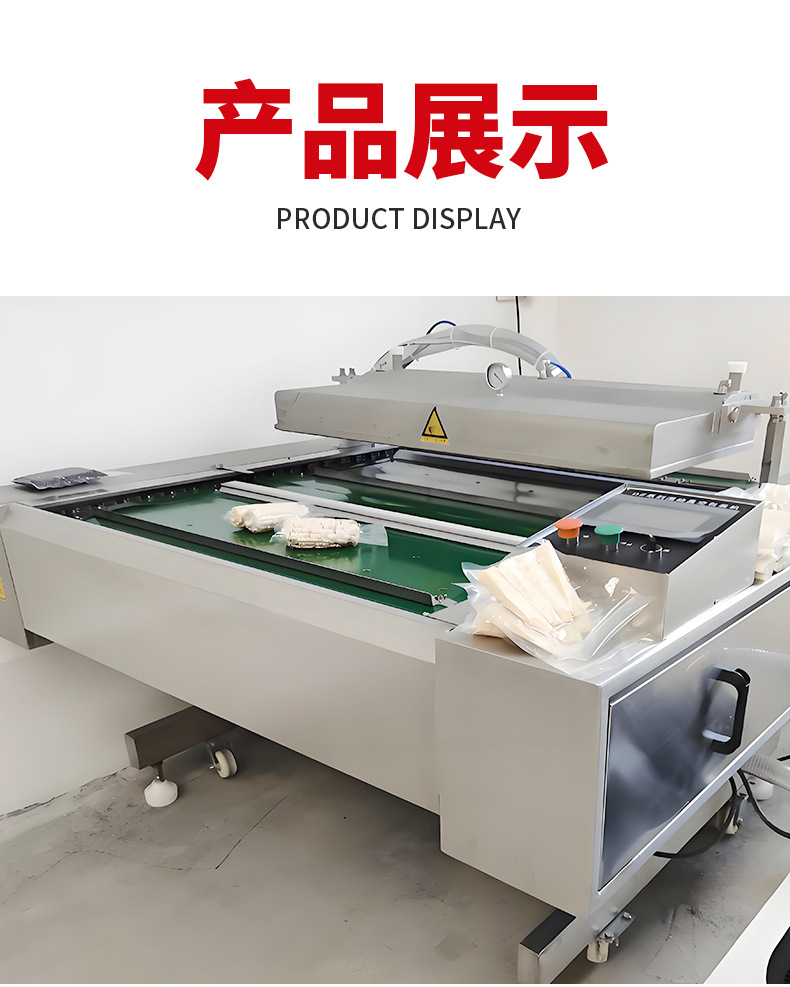

连续滚动真空包装机是一款全自动连续式、无人化循环作业的真空保鲜包装设备，颠覆传统单室、双室间歇式包装模式。设备采用履带式连续输送+滚动真空室结构，自动完成连续送料、抽真空、热封、冷却、排气、出料循环整套工序。整机可倾斜角度调节，适配带汤汁、带水分、油性物料的真空包装，杜绝积液漏气问题。搭载PLC智能控制系统，真空度、封口温度、运行速度、倾斜角度均可数字化可调，支持24小时不间断连续量产。设备可单机独立使用，也可对接分拣、输送、喷码、装箱设备，组成全自动真空包装流水线，大幅提升食品保鲜包装标准化产能。
English：

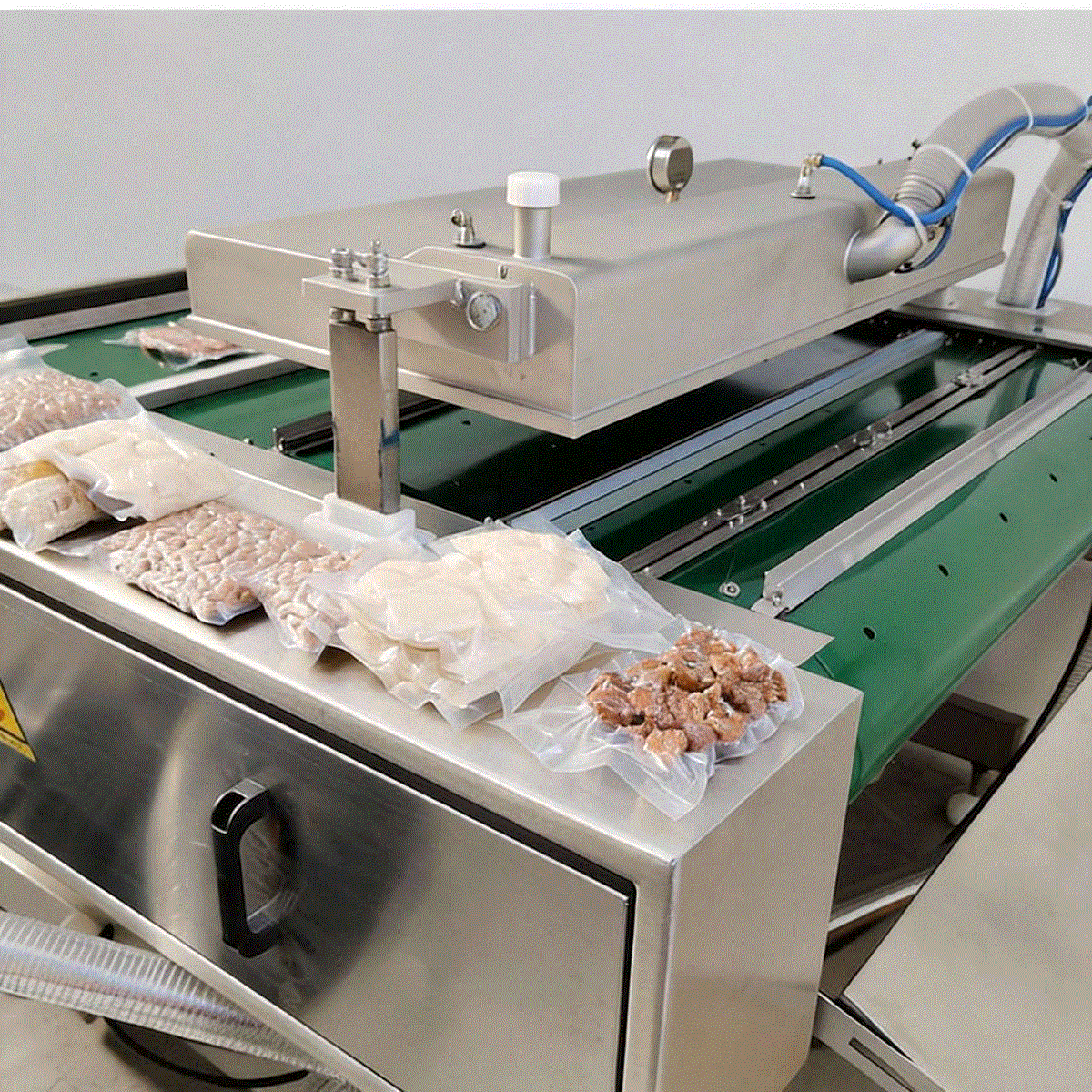

The continuous rolling vacuum packaging machine is a fully automatic unmanned cyclic vacuum fresh-keeping packaging device, which subverts the traditional intermittent single-chamber and double-chamber packaging mode. Adopting crawler continuous conveying and rolling vacuum chamber structure, it automatically completes continuous feeding, vacuumizing, heat sealing, cooling, exhaust and discharging cycles. The machine angle is adjustable, perfectly suitable for watery, soupy and oily materials without liquid accumulation and air leakage. Equipped with PLC intelligent control system, vacuum degree, sealing temperature, running speed and tilt angle are digitally adjustable, supporting 24-hour non-stop continuous mass production. It can work independently or connect with sorting, conveying, coding and casing equipment to form a full automatic vacuum packaging line, greatly improving standardized fresh-keeping packaging capacity.
二、适用物料 Applicable Materials（中英对照）
中文：
设备通用性极强，尤其适配含水、含油、带汤汁的各类食品物料，广泛覆盖生鲜、熟食、干货、酱料、农产品：
• 肉制品熟食：牛肉、猪肉、鸡肉、卤味、腊肉、香肠、休闲熟食、冷冻分割肉
• 水产海鲜：鱼块、虾仁、鱿鱼、贝类、海鲜熟食、冷冻海产品
• 酱腌菜品：泡菜、榨菜、酱菜、腌制品、带汤汁卤制品
• 干货杂粮：坚果、粮食、杂粮、干果、茶叶、中药材、土特产
• 流体半流体：酱料、底料、辣椒油、调味汁、半流质食品
• 工业物料：五金配件、电子元件、防潮五金制品、精密配件真空封存
English：
With strong versatility, especially suitable for watery, oily and soupy food materials, widely used in fresh food, cooked food, dry goods, sauces and agricultural products:
• Meat & Cooked Food: Beef, pork, chicken, braised food, cured meat, sausages, casual cooked snacks, frozen cut meat
• Seafood Products: Fish blocks, shrimps, squids, shellfish, cooked seafood, frozen marine products
• Pickled Vegetables: Pickles, mustard tuber, preserved vegetables, soupy marinated products
• Dry Goods & Grains: Nuts, cereals, dried fruits, tea, Chinese medicinal materials, local specialties
• Fluid & Semi-fluid Materials: Sauces, hot pot base, chili oil, seasoning sauce, semi-liquid food
• Industrial Materials: Hardware accessories, electronic components, moisture-proof hardware, precision parts vacuum storage
三、标准技术参数 Technical Parameters（中英对照）
中文参数
• 整机材质：整机食品级SUS304不锈钢，机架加厚防腐，防水防锈易清洗
• 控制系统：PLC可编程控制器+触摸屏智能操控，参数可储存、一键调用
• 工作方式：履带连续滚动式真空循环包装，无间歇不间断作业
• 倾斜角度：0–35°可调，适配干湿、带汤各类物料
• 真空系统：大功率工业真空泵，真空度可达-0.098MPa，抽气彻底无残气
• 封口系统：双面恒温加热封口，封口宽度8–12mm可调，密封牢固防漏气
• 包装速度：30–60次/分钟，可变频调速适配不同产品
• 适配袋型：普通真空袋、纹路袋、铝箔袋、复合保鲜袋
• 额定功率：4.5KW–7.5KW
• 适配电压：380V工业电压，可定制220V/380V 50Hz/60Hz适配东南亚电网
• 安全配置：过载保护、过热保护、紧急停机、故障自动报警
• 清洁结构：履带可拆卸、机身无缝设计，防水冲洗，无卫生死角
English Parameters
• Machine Material: Full food-grade SUS304 stainless steel, thickened anti-corrosion frame, waterproof, rust-proof and easy to clean
• Control System: PLC programmable controller + touch screen intelligent operation, storable and one-click recall parameters
• Working Mode: Crawler continuous rolling vacuum cycle packaging, non-intermittent uninterrupted operation
• Tilt Angle: 0–35° adjustable, suitable for dry, wet and soupy materials
• Vacuum System: High-power industrial vacuum pump, vacuum degree up to -0.098MPa, thorough air extraction
• Sealing System: Double-sided constant temperature heating sealing, adjustable sealing width 8–12mm, tight and airtight sealing
• Packing Speed: 30–60 times per minute, frequency adjustable for different products
• Applicable Bags: Ordinary vacuum bags, textured bags, aluminum foil bags, composite fresh-keeping bags
• Rated Power: 4.5KW–7.5KW
• Voltage Standard: 380V industrial voltage, customizable 220V/380V 50Hz/60Hz for Southeast Asia power grid
• Safety Configuration: Overload protection, overheat protection, emergency stop and automatic fault alarm
• Cleaning Structure: Detachable crawler, seamless fuselage design, washable and no sanitary dead corners
四、核心产品优势 Core Advantages（中英对照）
中文：
• 连续量产、效率翻倍：打破传统真空机间歇工作模式，全程连续循环作业，产能是普通双室机的2–3倍，适合大批量订单量产。
• 带汤带水专用不积液：可调节倾斜角度设计，完美解决海鲜、卤味、酱菜等带汤汁物料包装积液、封口漏气难题，成品合格率极高。
• 高真空锁鲜、延长保质期：高负压真空抽取+双面恒温密封，彻底排空袋内空气，有效抗氧化、防霉变、防变质，大幅延长食品保鲜周期。
• 全食品级卫生机身：整机304不锈钢无缝焊接，防水防油污，可直接高压水洗，符合食品出口商检与东南亚食品安全标准。
• 自动化省人工：仅需人工摆袋，设备自动循环抽真空封口出料，1人即可值守整条产线，大幅降低用工成本。
• 工况适配性强：电控防潮防尘、整机耐湿热，可定制60Hz频率，适配越南、泰国、印尼高温高湿工厂长期连续运行。
• 参数精准可控：真空度、温度、速度、角度数字化可调，不同产品一键存储配方，批次品质高度统一。
• 可整线对接拓展：可配套自动上料、分拣、称重、喷码、装箱设备，搭建无人化全自动真空包装生产线。
English：
• Double Continuous Production Efficiency: Breaking the intermittent working mode of traditional vacuum machines, continuous cyclic operation realizes 2–3 times higher capacity than ordinary double-chamber machines, ideal for mass order production.
• Special Design for Soupy & Watery Materials: Adjustable tilt angle solves liquid accumulation and air leakage problems of seafood, braised food and pickles, ensuring ultra-high finished product qualification rate.
• High Vacuum Fresh-Keeping: High negative pressure vacuum extraction and double-sided constant temperature sealing completely remove air, effectively anti-oxidation, anti-mildew and anti-deterioration, greatly extending food shelf life.
• Full Food-grade Sanitary Body: Seamless welded SUS304 stainless steel body, waterproof and oil-proof, directly washable with high-pressure water, meeting food export and Southeast Asian food safety standards.
• Labor-saving Automation: Only manual bag placement is required, automatic vacuumizing, sealing and discharging. One worker can operate the whole line to reduce labor costs significantly.
• Strong Working Condition Adaptation: Moisture-proof and dust-proof electric system, customizable 60Hz frequency, suitable for long-term continuous operation in high temperature and high humidity factories in Vietnam, Thailand and Indonesia.
• Precise Digital Control: Vacuum degree, temperature, speed and angle are digitally adjustable. One-click formula storage ensures highly unified batch quality.
• Production Line Expandable: Can match automatic feeding, sorting, weighing, coding and casing equipment to build unmanned full-automatic vacuum packaging lines.
五、应用场景 Application Scenarios（中英对照）
中文：
广泛应用于肉制品加工厂、海鲜深加工基地、熟食预制菜工厂、酱腌菜食品厂、农产品干货加工企业、中央厨房、休闲零食生产线、五金精密配件防潮包装车间。高度适配东南亚水产海鲜、热带熟食、酱料预制菜、特产干货的规模化真空保鲜包装，是食品工厂提升量产效率、统一产品品质、延长货架期、满足商超出口订单的核心主力包装设备。
English：
Widely used in meat processing factories, seafood deep-processing bases, pre-cooked food factories, pickle factories, agricultural product processing enterprises, central kitchens, snack production lines and hardware moisture-proof packaging workshops. It is highly suitable for large-scale vacuum fresh-keeping packaging of Southeast Asian aquatic products, tropical cooked food, sauce pre-made dishes and local dry specialties. It serves as the core packaging equipment for food factories to improve production efficiency, unify product quality, extend shelf life and meet supermarket and export order requirements.
六、可定制项目 Customizable Items（中英对照）
中文：
• 整机规格定制：常规600/800/1000型机身加宽加长非标定制
• 倾斜角度定制：0–35°固定或电动自动调节角度升级
• 真空系统升级：加大真空泵、双泵并联，适配高要求高真空产品
• 电压频率定制：适配越南、泰国、马来西亚、印尼220V/380V 50/60Hz电网
• 操作语言定制：英文、泰语、越南语多语言触摸屏系统
• 功能选配：自动喷码打码、氮气充气保鲜、尾气过滤装置
• 履带升级：加厚防滑耐磨履带、食品级防粘履带定制
• 整机尺寸优化：根据车间层高、摆放空间调整机身长宽
• 整线方案定制：上料→真空包装→检重→喷码→装箱全套流水线布局
English：
• Custom machine specifications: Non-standard widened and lengthened 600/800/1000 model
• Custom tilt angle: 0–35° fixed or electric automatic angle adjustment upgrade
• Vacuum system upgrade: Enlarged vacuum pump and double pump parallel connection for high vacuum demand products
• Custom voltage & frequency: Adapt to power grids of Vietnam, Thailand, Malaysia and Indonesia
• Multilingual customization: English, Thai, Vietnamese multi-language touch screen system
• Optional functions: Automatic coding, nitrogen filling fresh-keeping, tail gas filtering device
• Crawler upgrade: Custom thickened anti-slip wear-resistant and food-grade non-stick crawler
• Machine dimension optimization: Adjust machine length and width according to workshop space
• Turnkey line solution: Complete feeding, vacuum packaging, weight checking, coding and casing line layout
